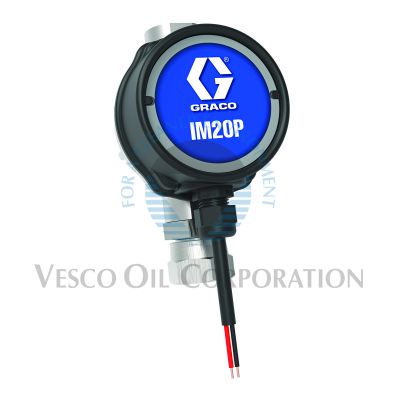

graco-133480-133480

GRACO
133480

$950.00

The IM20P wired electronic meter delivers precise in-line dispenses for in-plant, industrial and other applications. Its heavy-duty aluminum exterior and sealed electronics protect against corrosion inside or outside the plant. Designed and manufactured by a proven leader in meter technology, it’s capable of flow rates up to 20 gpm (75.7 lpm) for optimal performance.

  • GRACO
  • Material:133480
  • Model:METER,ELECTRONIC,IM20P,3/4 NPT
  • Summary:The IM20P wired electronic meter delivers precise in-line dispenses for in-plant, industrial and other applications. Its heavy-duty aluminum exterior and sealed electronics protect against corrosion inside or outside the plant. Designed and manufactured by a proven leader in meter technology, it’s capable of flow rates up to 20 gpm (75.7 lpm) for optimal performance.

Factory Stock

Graco 133480 IM20P Electronic Pulser Output In-Line Meter, 3/4 in (19mm) Ports, NPT
  • High Flow - Flow rates up to 20 gpm (75.7 lpm) for faster dispense.
  • Sealed Electronics - Meters are suitable for indoor or outdoor use. IP69K rated.
  • Rugged Aluminum Body - Remains corrosion free in harsh environments for years of trouble-free service.
  • Large Inlet and Outlet Porting - Minimal pressure drop to increase production.
  • Wired Convenience - Easily integrated with PLC (programmable logic controller).

Typical applications include heavy-duty mobile service trucks, mining and in-plant.
Dimensions
Unit Length 14.5 (in)
Unit Volume .209047 (ft³)
Unit Weight 2.1 (lb)
Unit Width 4.75 (in)
Unit Height 5.25 (in)

Attributes
Weight 1.3 (lb)
Type Electronic In-Line Meter
Outlet Thread Type NPT
Outlet Size 3/4 (in)
Minimum Flow Rate 0.95 (L/min)
Minimum Flow Rate 0.25 (GPM)
Meter Accuracy ±0.5
Maximum Working Pressure 1500 (psi)
Maximum Working Pressure 10 (MPa)
Maximum Working Pressure 102 (bar)
Maximum Operating Temperature 180 (°F)
Maximum Operating Temperature 82 (°C)
Maximum Flow Rate 75.7 (L/min)
Maximum Flow Rate 20 (GPM)
Inlet Thread Type NPT
Inlet Size 19.05 (mm)
Inlet Size 3/4 (in)
Inlet Size 1.905 (cm)
Dispense Type Preset
UPC Code 00769946227000
