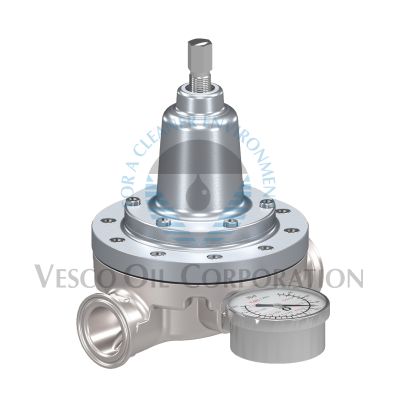

Graco’s low shear back pressure regulator (BPR) minimizes shear and prevents paint degradation so that manufacturers produce consistent finish quality.
Factory Stock
| Dimensions | |
|---|---|
| Unit Length | 13 (in) |
| Unit Volume | .403429 (ft³) |
| Unit Weight | 10.6 (lb) |
| Unit Width | 8.25 (in) |
| Unit Height | 6.5 (in) |
| Attributes | |
|---|---|
| Maximum Viscosity | 1000 (cP) |
| Wetted Material | Stainless Steel;Tungsten Carbide |
| Maximum Working Pressure | 21.1 (bar) |
| Maximum Working Pressure | 21.1 (kg/cm) |
| Maximum Working Pressure | 2068 (kPa) |
| Maximum Working Pressure | 300 (psi) |
| Minimum Operating Temperature | 32 (°F) |
| Minimum Regulated Pressure | 1.8 (bar) |
| Minimum Regulated Pressure | 1.8 (kg/cm) |
| Minimum Regulated Pressure | 172 (kPa) |
| Minimum Regulated Pressure | 0.17 (MPa) |
| Minimum Regulated Pressure | 25 (psi) |
| Outlet Size | 3.8 (cm) |
| Outlet Size | 1.5 (in) |
| Outlet Size | 38 (mm) |
| Outlet Thread Type | Sanitary Flange |
| Type | Back Pressure Regulator |
| Inlet Size | 38 (mm) |
| UPC Code | 00769946065916 |
| Compatible Material | Waterborne;Solventborne |
| Gauge Port Size | 0.635 (cm) |
| Gauge Port Size | 1/4 (in) |
| Gauge Port Size | 6.35 (mm) |
| Gauge Port Type | NPT |
| Inlet Size | 3.8 (cm) |
| Inlet Size | 1.5 (in) |
| Maximum Regulated Pressure | 250 (psi) |
| Inlet Thread Type | Sanitary Flange |
| Maximum Flow Rate | 25 (GPM) |
| Maximum Flow Rate | 95 (L/min) |
| Maximum Operating Temperature | 50 (°C) |
| Maximum Operating Temperature | 122 (°F) |
| Maximum Regulated Pressure | 17.6 (bar) |
| Maximum Regulated Pressure | 17.6 (kg/cm) |
| Maximum Regulated Pressure | 1724 (kPa) |
