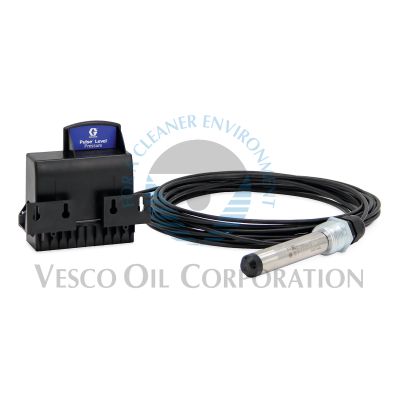

You deliver more than fluids. You’re delivering insight. Graco Pulse Level offers highly intuitive tank-level-visibility options to help you optimize deliveries, margins and customer service. Track tank levels, capture and apply data, and assign distribution routes quickly, accurately and confidently from the industry’s leading fluid management expert. Pulse Level is compatible with 4G LTE networks, so you don’t have to worry about investing in soon-to-be-obsolete technology.
Factory Stock
| Dimensions | |
|---|---|
| Unit Length | 7 (in) |
| Unit Volume | .205216 (ft³) |
| Unit Weight | 3 (lb) |
| Unit Width | 8.45 (in) |
| Unit Height | 6 (in) |
| Attributes | |
|---|---|
| Overall Length | 130 (mm) |
| Obround Tank Maximum Volume | 999999 (gal) |
| Overall Length | 0.13 (m) |
| Overall Length | 5.118 (in) |
| Overall Length | 0.427 (ft) |
| Overall Length | 13 (cm) |
| Overall Height | 124.91 (mm) |
| Overall Height | 0.125 (m) |
| Overall Height | 4.918 (in) |
| Overall Height | 0.41 (ft) |
| Overall Height | 12.5 (cm) |
| Obround Tank Maximum Volume | 999999 (L) |
| Weight | 2.3 (lb) |
| Overall Width | 6 (cm) |
| Overall Width | 0.2 (ft) |
| Overall Width | 2.375 (in) |
| Overall Width | 0.06 (m) |
| Overall Width | 60.33 (mm) |
| Product Type | Tank Level Monitor (TLM) |
| RF Communication | 0.85-0.9, 1.8-1.9 (GHz) |
| Type | Level Sensor |
| Vertical Tank Maximum Height | 30 (ft) |
| Vertical Tank Maximum Height | 9 (m) |
| Vertical Tank Maximum Volume | 999999 (gal) |
| Vertical Tank Maximum Volume | 999999 (L) |
| Weight | 1.15 (kg) |
| Maximum Operating Temperature | 55 (°C) |
| UPC Code | 00769946214970 |
| Model | Pulse |
| Approvals | CE, FCC,Ex ia IIB T4 Ga Class I zone 0 AEx ia IIB T4 Ga Complies with UL913II 1 G-Ex ia IIB T4 Ga [-30 < Ta < +55°C]SIRA15ATEX2103 X IECEx CSA 15.0006X |
| Battery Chemistry | 3.6V Li-Ion |
| Battery Life | 10 years (h) |
| Battery Size | Custom |
| Cylindrical Tank Maximum Height | 30 (ft) |
| Cylindrical Tank Maximum Height | 9 (m) |
| Cylindrical Tank Maximum Volume | 999999 (gal) |
| Cylindrical Tank Maximum Volume | 999999 (L) |
| Fluid Level Measurement Accuracy | +/-1 in. (+/- 2 cm) (%) |
| For Use With | Pulse Level |
| Maximum Ambient Temperature | 131 (°F) |
| Obround Tank Maximum Length | Any (m) |
| Maximum Operating Temperature | 131 (°F) |
| Maximum RF Operating Temperature | 131 (°F) |
| Maximum Storage Temperature | 50 (°C) |
| Maximum Storage Temperature | 122 (°F) |
| Minimum Ambient Temperature | -20 (°F) |
| Minimum RF Operating Temperature | -4 (°F) |
| Minimum Storage Temperature | -20 (°C) |
| Minimum Storage Temperature | -4 (°F) |
| Number of Batteries | 1 |
| Obround Tank Maximum Height | 30 (ft) |
| Obround Tank Maximum Height | 9 (m) |
| Obround Tank Maximum Length | Any (ft) |
