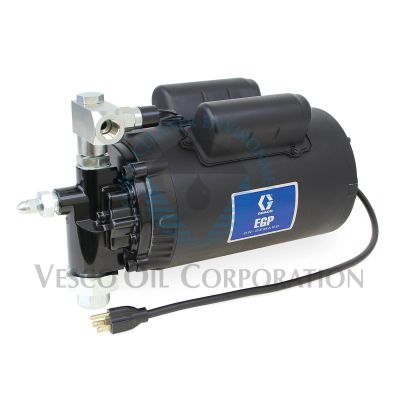

Choose cost-saving convenience with the all-new Graco EGP electric pumps. Install the EGP on-demand pump to replace traditional pneumatic pumps and reduce operating costs. These pumps offer the same powerful, high-quality performance you’ve come to expect from Graco — only for less operating cost and more convenience.
Factory Stock
| Dimensions | |
|---|---|
| Unit Length | 12.5 (in) |
| Unit Volume | 1.778028 (ft³) |
| Unit Weight | 51 (lb) |
| Unit Width | 20.5 (in) |
| Unit Height | 12 (in) |
| Attributes | |
|---|---|
| Outlet Thread Size | 0.5 |
| Wetted Parts | Zinc-Plated Carbon Steel;Stainless Steel;Galvanized Steel;Aluminum;Nitrile Rubber |
| Outlet Thread Type | NPT |
| Overall Depth | 12.5 (in) |
| Overall Depth | 317.5 (mm) |
| Overall Height | 8 (in) |
| Overall Height | 203.2 (mm) |
| Overall Width | 6.75 (in) |
| Overall Width | 171.4 (mm) |
| Power Rating | 1.5 (HP) |
| Power Type | Electric |
| Type | Gear Pump |
| Voltage | 115 |
| Weight | 36 (lb) |
| Outlet Thread Gender | Female |
| Maximum Working Pressure | 500 (psi) |
| Maximum Working Pressure | 34.5 (bar) |
| Maximum Speed | 1750 (RPM) |
| Maximum Flow Rate | 15.1 (L/min) |
| Maximum Flow Rate | 4 (GPM) |
| Maximum Current | 14.4 (A) |
| Inlet Thread Type | NPT |
| Inlet Thread Size | 0.75 (in) |
| Inlet Thread Gender | Female |
| Fluid Pressure Control Type | Internal Bypass;Electrical Pressure Shut Off Switch |
| Compatible Material | Oil |
| Model | EGP |
| UPC Code | 00769946183672 |
