graco-26B630-26B630

GRACO
26B630

$4,490.00

Speed up savings when agitating high viscosity material. The radial piston air motor that powers this back-geared agitator uses up to 85 percent less compressed air than a comparable rotary vane motor.

  • GRACO
  • Material:26B630
  • Model:AGITATOR,6:1
  • Summary:Speed up savings when agitating high viscosity material. The radial piston air motor that powers this back-geared agitator uses up to 85 percent less compressed air than a comparable rotary vane motor.

Factory Stock

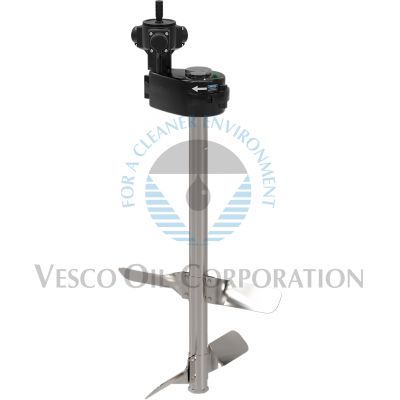

Graco 26B630 Back-Geared Radial Piston Agitator, heavy duty
  • Installs quickly for immediate cost savings
  • Needs no air line lubrication to keep running well
  • Operates more quietly than comparable rotary vane agitator air motors
  • Connects to Graco’s Intelligent Paint Kitchen for agitator speed monitoring and control

For agitating 500 cP to 3000 cP viscosity materials
Dimensions
Unit Length 46 (in)
Unit Volume 3.806713 (ft³)
Unit Weight 37 (lb)
Unit Width 13 (in)
Unit Height 11 (in)

Attributes
Wetted Material Stainless Steel;Acetal;AF;Nylon;PTFE
Weight 31.1 (lb)
Weight 14.1 (kg)
Type Agitator
Power Rating 0.16 (HP)
Motor Type Pneumatic - Radial Piston
Maximum Working Pressure 70 (psi)
Maximum Working Pressure 500 (kPa)
Maximum Working Pressure 5 (bar)
Maximum Viscosity 3000 (cP)
Maximum Speed 83 (RPM)
Maximum Air Inlet Pressure 70 (psi)
Maximum Air Inlet Pressure 500 (kPa)
Maximum Air Inlet Pressure 5 (bar)
For Use With 55 Gallon (208 Liter) Drum
Air Inlet Thread Type NPT
Air Inlet Size 6.35 (mm)
Air Inlet Size 1/4 (in)
Air Inlet Size 0.635 (cm)
UPC Code 00769946188615
