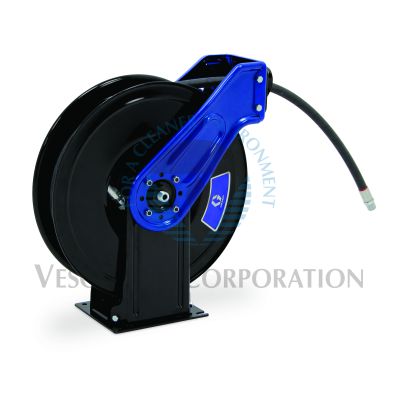

graco-XDM65B-XDM65B

GRACO
XDM65B

$1,395.00

Price too low to display!
See price in cart.

Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications.

  • GRACO
  • Material:XDM65B
  • Model:XDX SERIES 20 REEL,HOSE
  • Summary:Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications.

Quantity in stock: 4

Graco XDM65B XDX™ 20, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Truck/Bench Mount, Metallic Blue
  • Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
  • Durable Finish - Baked-on enamel finish protects reel from corrosion
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
Dimensions
Unit Length 24.5 (in)
Unit Volume 3.502026 (ft³)
Unit Weight 72.05 (lb)
Unit Width 9.5 (in)
Unit Height 26 (in)

Attributes
Minimum Temperature -28 (°C)
Wetted Parts Zinc-Plated Steel;Anodized Aluminum;Nitrile Rubber
Minimum Temperature -20 (°F)
Mount Location Truck Mount;Bench Mount
Outlet Size 1/2 (in)
Outlet Size 12.7 (mm)
Outlet Thread Gender Male
Overall Height 25.2 (in)
Overall Height 640 (mm)
Overall Length 23.4 (in)
Overall Length 594 (mm)
Overall Width 7.5 (in)
Overall Width 191 (mm)
Recommended Environment Indoor;Outdoor
Recommended Fluid Type Oil
Reel Thread Type NPT
Type Spring-Rewind Reel
Hose Length 15 (m)
UPC Code 00769946210736
Series 20
Application Oil
Color Metallic Blue
Frame Type Dual Pedestal
Hose Inside Diameter 1/2 (in)
Hose Inside Diameter 12.7 (mm)
Hose Length 50 (ft)
Maximum Working Pressure 2000 (psi)
Hose Reel Type Reel with Hose
Inlet Size 1/2 (in)
Inlet Size 12.7 (mm)
Inlet Thread Gender Male
Inlet Thread Type NPSM
Maximum Temperature 87 (°C)
Maximum Temperature 190 (°F)
