Graco 222071 Fire-Ball® 300 Series 50:1b 400 lb. (181 kg) Grease Pump - Lube Truck Package
- Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
Install the Fire-Ball 300 50:1 in grease dispense applications.
| Dimensions | |
|---|
| Unit Length |
1.2 (in) |
| Unit Volume |
.001 (ft³) |
| Unit Weight |
78.22 (lb) |
| Unit Width |
1.2 (in) |
| Unit Height |
1.2 (in) |
| Attributes | |
|---|
| Fluid Outlet Thread Type |
NPT |
| Wetted Material |
CS;Delrin;Buna-N;Polyurethane |
| Includes |

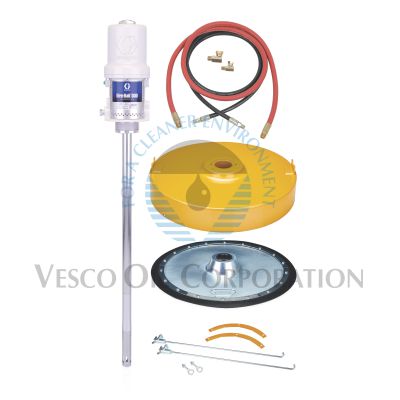

Fireball 50:1 300 Pump;Hose and Fitting Kit;Cover;Follow Plate;Hold-Down Kit |
| Maximum Air Working Pressure |
180 |
| Maximum Working Pressure |
350 (bar) |
| Maximum Working Pressure |
35000 (kPa) |
| Maximum Working Pressure |
35 (MPa) |
| Maximum Working Pressure |
5000 (psi) |
| Motor Type |
Pneumatic |
| Mount Location |
Drum Mount;Truck Mount |
| Power Type |
Pneumatic |
| Pump Ratio |
50:1 |
| Pump Weight |
22 (lb) |
| Type |
Piston Pump Package |
| Fluid Outlet Thread Gender |
Female |
| Fluid Outlet Size |
6.35 (mm) |
| Fluid Outlet Size |
1/4 (in) |
| Fluid Outlet Size |
0.635 (cm) |
| Fluid Inlet Type |
Slotted |
| Fluid Inlet Thread Type |
NPT |
| Fluid Inlet Thread Gender |
Female |
| Compatible Material |
Grease |
| Application |
Industrial |
| Air Inlet Thread Type |
NPT |
| Air Inlet Thread Gender |
Female |
| Air Inlet Size |
0.375 (in) |
| Series |
300 |
| Model |
Fire-Ball |
| UPC Code |
00633955578500 |
