Graco 224534 Fire-Ball® 300 5:1 Bulk Oil Bench/Top Tank Dispensing Package
- Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
Install the Fire-Ball 300 5:1 in high pressure, medium volume oil transfer applications such as automotive dealerships, fast lube centers, and service shops.
| Dimensions | |
|---|
| Unit Length |
1.2 (in) |
| Unit Volume |
.001 (ft³) |
| Unit Weight |
102.95 (lb) |
| Unit Width |
1.2 (in) |
| Unit Height |
1.2 (in) |
| Attributes | |
|---|
| Fluid Outlet Thread Type |
NPT |
| Wetted Material |
Steel;Polyurethane;Aluminum;Buna-N |
| Includes |

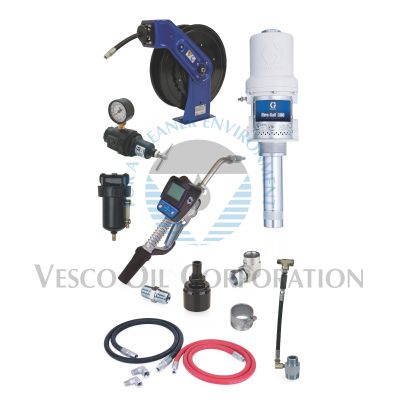

Fire-Ball 300 5:1 Pump;Regulator/Gauge;Air Filter;Nipple;SD Series Reel with Hose;Drain Valve;Hose Kit;Thermal Relief Valve;SDM5 Meter |
| Maximum Air Working Pressure |
180 |
| Maximum Flow Rate |
2.8 (gpm @) |
| Maximum Fluid Working Pressure |
900 (psi) |
| Maximum Working Pressure |
62 (bar) |
| Maximum Working Pressure |
6200 (kPa) |
| Maximum Working Pressure |
6.2 (MPa) |
| Maximum Working Pressure |
900 (psi) |
| Motor Type |
Pneumatic |
| Mount Location |
Bench Mount;Universal |
| Power Type |
Pneumatic |
| Pump Ratio |
5:1 |
| Pump Weight |
17 (lb) |
| Type |
Piston Pump Package |
| Fluid Inlet Size |
3.8100 (cm) |
| UPC Code |
00633955180512 |
| Model |
Fire-Ball |
| Series |
300 |
| Air Inlet Size |
0.375 (in) |
| Air Inlet Thread Gender |
Female |
| Air Inlet Thread Type |
NPT |
| Application |
Industrial |
| Compatible Material |
Oil |
| Fluid Outlet Thread Gender |
Female |
| Fluid Inlet Size |
1.5 (in) |
| Fluid Inlet Size |
38.1000 (mm) |
| Fluid Inlet Thread Gender |
Female |
| Fluid Inlet Thread Type |
NPT |
| Fluid Outlet Size |
1.27 (cm) |
| Fluid Outlet Size |
1/2 (in) |
| Fluid Outlet Size |
12.7 (mm) |
