graco-225782-225782

GRACO
225782

$6,040.00
  • Material:225782
  • Model:FIREBALL 425 PUMP,10:1,PKG
  • Summary:

    With a large 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher volume dispensing, the Fire-Ball 425 delivers field-proven durability for multiple fluid types and exceptional cost savings that are hard to beat!

Factory Stock

Graco 225782 Fire-Ball® 425 Series 10:1 55 Gallon (200 Liter) Oil Pump - Cover-Mounted Package
  • Durable - Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

The Fire-Ball 425 is the pump of choice for your most demanding high volume applications - an ideal choice for applications such as truck fleet service facilities and in-plant applications where multiple dispenses happen at the same time.
Dimensions
Unit Length 1.2 (in)
Unit Volume .001 (ft³)
Unit Weight 67.3 (lb)
Unit Width 1.2 (in)
Unit Height 1.2 (in)

Attributes
Fluid Outlet Thread Type NPT
Wetted Material Steel;Polyurethane;Aluminum;Nitrile

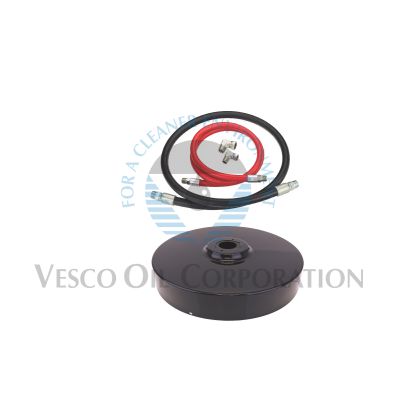

Includes Hose Kit;Drum Cover
Maximum Air Working Pressure 180
Maximum Flow Rate 4.1 (gpm @)
Maximum Fluid Working Pressure 1800 (psi)
Maximum Working Pressure 124 (bar)
Maximum Working Pressure 12400 (kPa)
Maximum Working Pressure 12.4 (MPa)
Maximum Working Pressure 1800 (psi)
Motor Type Pneumatic
Mount Location Drum Mount
Power Type Pneumatic
Pump Ratio 10:1
Pump Weight 28.7 (lb)
Type Piston Pump Package
Fluid Inlet Size 3.8100 (cm)
UPC Code 00633955337732
Model Fire-Ball
Series 425
Air Inlet Size 0.5 (in)
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Oil
Fluid Outlet Thread Gender Female
Fluid Inlet Size 1.5 (in)
Fluid Inlet Size 38.1000 (mm)
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size 1.905 (cm)
Fluid Outlet Size 3/4 (in)
Fluid Outlet Size 19.05 (mm)
