graco-239705-239705
graco-239705-239705

GRACO
239705

Price: $1,300.00

Sale: $1,105.00

These durable, easy-to-use in-line electronic dispense meters are designed with automotive dealerships, fast lube centers, and service shops in mind.

  • GRACO
  • Material:239705
  • Model:KIT, HOSE & METER
  • Summary:

    These durable, easy-to-use in-line electronic dispense meters are designed with automotive dealerships, fast lube centers, and service shops in mind.

Factory Stock

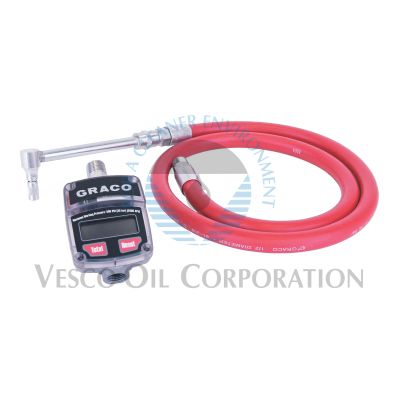

Graco 239705 16 Gallon (60 L) Gear Lube Meter Dispense Kit
  • Rugged stainless steel body remains corrosion free in hard environments for years of trouble-free service.
  • Large, easy-to-read LCD display show dispense quantities.
  • Heavy-duty construction for indoor or outdoor use.
  • Simple operator controls and measures in pints, quarts, liters or gallons.
  • Tracks totals in two modes: reset total for a periodic dispense history and non-reset total for the meter’s total dispense history.
  • Easy battery replacement, operates on single 9V alkaline battery.
  • Kit includes extension and nozzle for gear lube.

Typical applications include automotive, fast lube centers, service shops, fleet service facilities, and in-plant.
Dimensions
Unit Length 14.1 (in)
Unit Volume .420226 (ft³)
Unit Weight 4.75 (lb)
Unit Width 10.3 (in)
Unit Height 5 (in)

Attributes
Wetted Material Nickel;Zinc;LCP;Nitrile Rubber
Weight 1.8 (lb)
Weight 0.82 (kg)
Valve Type Metered
Unit of Measure Quart;Pint;Gallon;Liter
Type In-Line Meter Dispense Kit
Recommended Environment Indoor;Outdoor
Meter Accuracy ±0.5
Maximum Working Pressure 500 (psi)
Maximum Working Pressure 3.4 (MPa)
Maximum Working Pressure 3400 (kPa)
Maximum Working Pressure 34 (bar)
Inlet Thread Type NPT
Inlet Size 12.7 (mm)
Inlet Size 0.5 (in)
Inlet Size 1.27 (cm)
For Use With Petroleum- and synthetic-based oils (motor, gear and ATF)
Display Type Electronic
Compatible Material Petroleum-Based Oil;Synthetic-Based Oil
Battery Size 9 V
Battery Chemistry Alkaline
Model LD
UPC Code 00633955781191
