The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.
The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.
Factory Stock
| Dimensions | |
|---|---|
| Unit Weight | 72.745 (lb) |
| Attributes | |
|---|---|
| Fluid Outlet Thread Type | NPT |
| Wetted Material | CS;Leather |
| Type | Piston Pump Package |
| Pump Weight | 30 (lb) |
| Pump Ratio | 75:1 |
| Power Type | Pneumatic |
| Mount Location | Truck Mount |
| Motor Type | Pneumatic |
| Maximum Working Pressure | 4000 (psi) |
| Maximum Working Pressure | 27.6 (MPa) |
| Maximum Working Pressure | 27600 (kPa) |
| Maximum Working Pressure | 276 (bar) |
| Maximum Air Working Pressure | 100 |

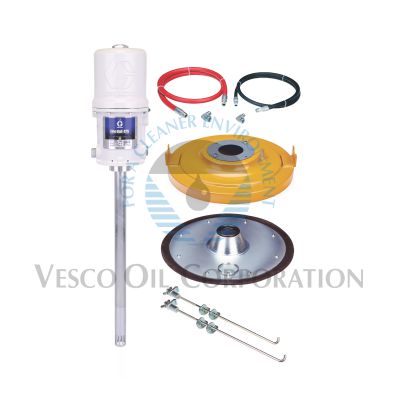

| Includes | Fireball 75:1 425 Pump;Hose and Fitting Kit;Cover;Follow Plate;Hold-Down Kit |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Size | 9.525 (mm) |
| Fluid Outlet Size | 3/8 (in) |
| Fluid Outlet Size | 0.9525 (cm) |
| Fluid Inlet Type | Slotted |
| Compatible Material | Grease |
| Application | Industrial |
| Air Inlet Thread Type | NPT |
| Air Inlet Thread Gender | Female |
| Air Inlet Size | 0.5 (in) |
| Series | 425 |
| Model | Fire-Ball |
| UPC Code | 00633955966260 |
