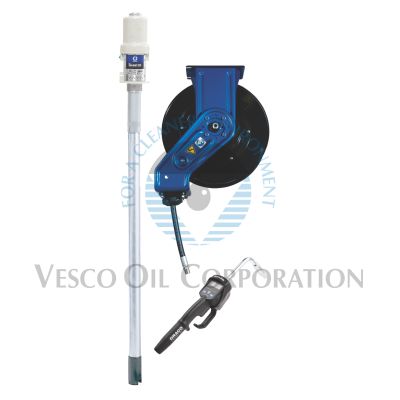

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
Factory Stock
| Dimensions | |
|---|---|
| Unit Weight | 78.35 (lb) |
| Attributes | |
|---|---|
| Maximum Working Pressure | 3.7 (MPa) |
| Fluid Outlet Thread Type | NPT |
| Includes | Bung Adapter;Down Tube;SD Series Reel;Fluid Hose;Meter |
| Maximum Air Working Pressure | 180 |
| Maximum Flow Rate | 1.84 (gpm @) |
| Maximum Fluid Working Pressure | 540 (psi) |
| Maximum Working Pressure | 37 (bar) |
| Maximum Working Pressure | 3700 (kPa) |
| Fluid Outlet Size | 12.7 (mm) |
| Maximum Working Pressure | 540 (psi) |
| Motor Type | Pneumatic |
| Power Type | Pneumatic |
| Pump Ratio | 3:1 |
| Pump Weight | 16 (lb) |
| Type | Piston Pump Package |
| Wetted Material | Steel;Buna-N;Polyurethane;Aluminum;Rulon |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Size | 1/2 (in) |
| Fluid Outlet Size | 1.27 (cm) |
| Fluid Inlet Thread Type | NPT |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size | 38.1000 (mm) |
| Fluid Inlet Size | 1.5 (in) |
| Fluid Inlet Size | 3.8100 (cm) |
| Compatible Material | Oil |
| Application | Industrial |
| Air Inlet Thread Type | NPT |
| Air Inlet Thread Gender | Female |
| Air Inlet Size | 0.375 (in) |
| Series | 225 |
| Model | Mini Fire-Ball |
| UPC Code | 00633955073616 |
