graco-24J066-24J066
graco-24J066-24J066

GRACO
24J066

$2,860.00

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

  • GRACO
  • Material:24J066
  • Model:KIT, 400# CART WITH REEL NPT
  • Summary:

    Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

Factory Stock

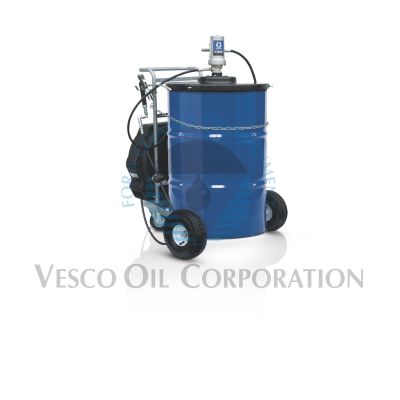

Graco 24J066 LD Series 50:1 400 lb. (180 kg) Grease Pump - Mobile Package
  • Three Inch Air Motor - Provides more power to create better flow.
  • Engineered for Durability - Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
  • Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
  • Pilot Valves - Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.

Attributes
Maximum Working Pressure 345 (bar)
Wetted Material Steel;Brass;Nitrile Rubber;Polyurethane;UHMWPE;Acetal
Type Piston Pump Package
Pump Ratio 50:1
Power Type Pneumatic
Mount Location Cart Mount
Maximum Working Pressure 5000 (psi)
Maximum Working Pressure 35 (MPa)
Maximum Working Pressure 34500 (kPa)
UPC Code 00633955618657
Maximum Air Working Pressure 100 (psi)
Fluid Outlet Size 6.35 (mm)
Fluid Outlet Size 1/4 (in)
Fluid Outlet Size 0.635 (cm)
Compatible Material Grease
Application Grease
Air Inlet Size 0.25 (in)
Model LD
