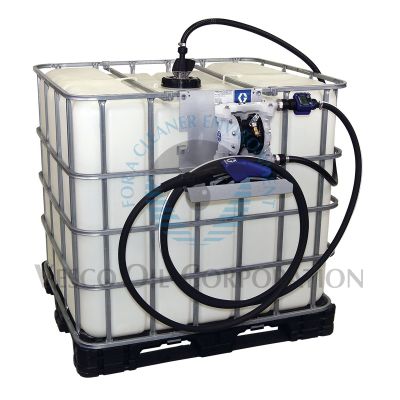

Graco's SD Series DEF solutions are built on versatility with a Husky 515 AODD pump delivering up to 15 gpm (57 lpm) and operating on as little as 30 to 50 psi (2.1 to 3.4 bar). Increasing productivity this powerful pneumatic design provides superior suction and lift in tanks, totes and drums. Whether a small garage or large dealership, Graco has a complete line of Diesel Exhaust Fluid (DEF) for every application, capable of higher outputs over longer runs.
Graco's SD Series DEF solutions are built on versatility with a Husky 515 AODD pump delivering up to 15 gpm (57 lpm) and operating on as little as 30 to 50 psi (2.1 to 3.4 bar). Increasing productivity this powerful pneumatic design provides superior suction and lift in tanks, totes and drums. Whether a small garage or large dealership, Graco has a complete line of Diesel Exhaust Fluid (DEF) for every application, capable of higher outputs over longer runs.
Factory Stock
| Dimensions | |
|---|---|
| Unit Length | 26.75 (in) |
| Unit Volume | 6.6662 (ft³) |
| Unit Weight | 44 (lb) |
| Unit Width | 26.5 (in) |
| Unit Height | 16.25 (in) |
| Attributes | |
|---|---|
| Inlet Size | 3/4 (in) |
| Type | Diaphragm Pump Package |
| Inlet Size | 19.05 (mm) |
| Inlet Thread Gender | Female |
| Inlet Thread Type | BSPP |
| Maximum Air Pressure | 4 (bar) |
| Maximum Air Pressure | 40 (kPa) |
| Maximum Air Pressure | 50 (psi) |
| Maximum Cycle Rate | 400 (CPM) |
| Maximum Fluid Pressure | 3.4 (bar) |
| Maximum Fluid Pressure | 34 (kPa) |
| Maximum Fluid Pressure | 0.3 (MPa) |
| Maximum Fluid Pressure | 50 (psi) |
| Maximum Solid Size | 0.2381 (cm) |
| Maximum Solid Size | 0.09375 (in) |
| Maximum Solid Size | 2.3813 (mm) |
| Mount Location | Tote Mount |
| Fluid Inlet Thread Type | BSPP |
| UPC Code | 00633955688261 |
| Model | SD |
| Application | Industrial |
| Compatible Material | Diesel Exhaust Fluid |
| Fluid Inlet Size | 1.9050 (cm) |
| Fluid Inlet Size | 3/4 (in) |
| Fluid Inlet Size | 19.05 (mm) |
| Fluid Inlet Thread Gender | Female |
| Inlet Size | 1.905 (cm) |
| Fluid Outlet Size | 1.905 (cm) |
| Fluid Outlet Size | 3/4 (in) |
| Fluid Outlet Size | 19.05 (mm) |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | BSPP |
| For Use With | DEF |
| Hose Length | 5 (ft) |
| Includes | Air Operated Diaphragm Pump;Mounting Bracket;LD Automatic Nozzle with SST Spout;LD DEF Meter;Dispense Hose and 2 Clamps;Suction Hose and 2 Clamps;Air Safety Valve |
