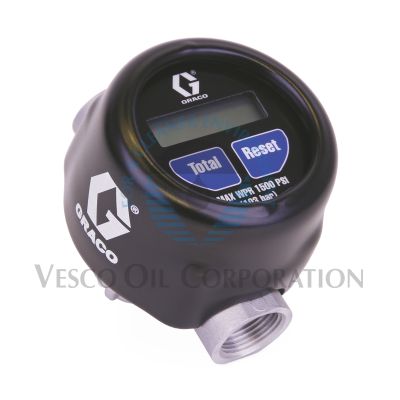

Graco's IM20 in-line meter is designed to last and is capable of measuring a variety of fluids up to 20 gpm (75.7 lpm) flow rates. The IM20 is backed by our robust warranty and features upgraded electronics and an easy-to-read LCD screen with simple operator controls that measures in quarts, gallons, pints and liters.
Graco's IM20 in-line meter is designed to last and is capable of measuring a variety of fluids up to 20 gpm (75.7 lpm) flow rates. The IM20 is backed by our robust warranty and features upgraded electronics and an easy-to-read LCD screen with simple operator controls that measures in quarts, gallons, pints and liters.
Factory Stock
| Dimensions | |
|---|---|
| Unit Length | 14.5 (in) |
| Unit Volume | .230758 (ft³) |
| Unit Weight | 1.8 (lb) |
| Unit Width | 5 (in) |
| Unit Height | 5.5 (in) |
| Attributes | |
|---|---|
| Weight | 1.25 (lb) |
| Type | Electronic In-Line Meter |
| Outlet Thread Type | NPT |
| Outlet Size | 19.05 (mm) |
| Outlet Size | 3/4 (in) |
| Outlet Size | 1.905 (cm) |
| Minimum Flow Rate | 0.25 (GPM) |
| Maximum Working Pressure | 1500 (psi) |
| Maximum Working Pressure | 10.3 (MPa) |
| Maximum Working Pressure | 10300 (kPa) |
| Maximum Working Pressure | 103 (bar) |
| Maximum Flow Rate | 20 (GPM) |
| Inlet Thread Type | NPT |
| Inlet Size | 19.05 (mm) |
| Inlet Size | 3/4 (in) |
| Inlet Size | 1.905 (cm) |
| For Use With | Petroleum-Based Oils;Synthetic-Based Oils;Antifreeze |
| Model | IM20 |
| UPC Code | 00755652701941 |
