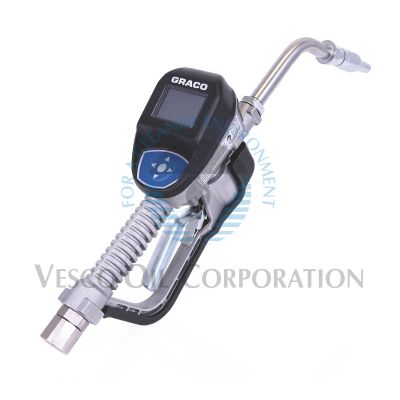

Graco dispense meters designed for our Pulse® fluid management system are durable and easy to use. Everything you need is at your fingertips. Enter PINs and other data using the intuitive display.
Graco dispense meters designed for our Pulse® fluid management system are durable and easy to use. Everything you need is at your fingertips. Enter PINs and other data using the intuitive display.
Factory Stock
Track and record inventory levels with electronic metering
Increase technician productivity
Flexible—one meter can handle all fluids
Reliable—time-tested Graco engineering
Large, Intuitive Display—high-contrast display for low and bright light conditions
Protective trigger guard—prevents accidental dispenses
Four finger trigger with lock-on feature
No need to leave bay or use computer to complete dispense
Long battery life—uses 4 AA easy-to-replace batteries
| Dimensions | |
|---|---|
| Unit Length | 16 (in) |
| Unit Volume | .356482 (ft³) |
| Unit Weight | 6.6 (lb) |
| Unit Width | 5.5 (in) |
| Unit Height | 7 (in) |
| Attributes | |
|---|---|
| Metering Gun Weight | 2.4 (kg) |
| Wetted Material | Aluminum;Stainless Steel;PBT;Nitrile Rubber;Zinc-Plated Carbon Steel;Nickel-Plated Carbon Steel |
| Metering Gun Weight | 5.3 (lb) |
| Minimum Flow Rate | 0.25 (GPM) |
| Minimum Flow Rate | 0.9 (L/min) |
| Minimum Operating Temperature | -16 (°C) |
| Minimum Operating Temperature | 4 (°F) |
| Nozzle Type | Oil Automatic Quick-Close |
| Overall Length | 33 (cm) |
| Overall Length | 1 (ft) |
| Overall Length | 13 (in) |
| Overall Length | 0.33 (m) |
| Overall Length | 330 (mm) |
| Overall Width | 9.5 (cm) |
| Overall Width | 3.75 (in) |
| Overall Width | 95 (mm) |
| Product Type | Meter |
| Trigger Lock | Locking |
| Type | Electronic Metered Dispense Valve |
| Unit of Measure | Pint;Quart;Gallon;Liter |
| Warranty | Five Years Structural;3 Years Electronics;1 Year Wear Components |
| Maximum Flow Rate | 8 (GPM) |
| UPC Code | 00755652692102 |
| Model | Pulse |
| Display Type | LCD |
| Extension Type | Rigid |
| Fluid Inlet Thread Gender | Female |
| Includes | Extension;Nozzle;Batteries;Swivel Boot |
| Inlet Size | 1.27 (cm) |
| Inlet Size | 1/2 (in) |
| Inlet Size | 12.7 (mm) |
| Inlet Thread Type | NPT |
| Meter Technology | Oval Gear |
| Maximum Operating Temperature | 70 (°C) |
| Maximum Operating Temperature | 158 (°F) |
| Maximum Storage Temperature | 70 (°C) |
| Maximum Storage Temperature | 158 (°F) |
| Maximum Working Pressure | 103.4 (bar) |
| Maximum Working Pressure | 10340 (kPa) |
| Maximum Working Pressure | 10.3 (MPa) |
| Maximum Working Pressure | 1500 (psi) |
| Meter Accuracy | ±0.5 |
