Factory Stock
Large, Intuitive Display—high-contrast display for low and bright light conditions
Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
Ergonomic—four-finger trigger and easy-to-use button pad reduce worker fatigue
Reliable—time-tested Graco engineering
Durable - Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
Long battery life—uses 4 AA easy-to-replace batteries
| Dimensions | |
|---|---|
| Unit Length | 16 (in) |
| Unit Volume | .356482 (ft³) |
| Unit Weight | 6.4 (lb) |
| Unit Width | 5.5 (in) |
| Unit Height | 7 (in) |
| Attributes | |
|---|---|
| Overall Length | 33 (cm) |
| Metering Gun Weight | 2.4 (kg) |
| Overall Height | 146 (mm) |
| Overall Height | 5.75 (in) |
| Overall Height | 14.6 (cm) |
| Outlet Thread Type | Straight Thread O-Ring Boss |
| Nozzle Type | Manual |
| Minimum Operating Temperature | 4 (°F) |
| Minimum Operating Temperature | -16 (°C) |
| Minimum Flow Rate | 0.9 (L/min) |
| Minimum Flow Rate | 0.25 (GPM) |
| Metering Gun Weight | 5.3 (lb) |
| Wetted Material | Aluminum;Stainless Steel;PBT/PC;Zinc;Nitrile Rubber;CS |
| Overall Length | 13 (in) |
| Overall Length | 330 (mm) |
| Overall Width | 9.5 (cm) |
| Overall Width | 3.75 (in) |
| Overall Width | 95 (mm) |
| Recommended Environment | Indoor |
| Trigger Lock | Non-Locking |
| Trigger Protection Type | Guard |

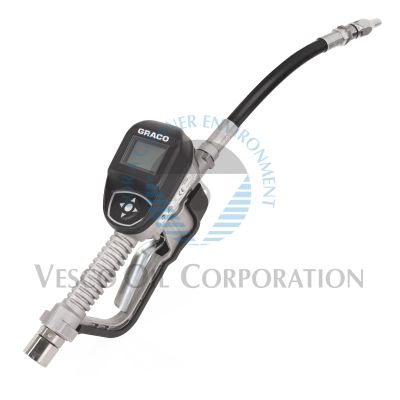

| Type | Electronic Metered Dispense Valve |
| Unit of Measure | Quart;Pint;Gallon;Liter |
| Valve Type | Metered |
| Warranty | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
| Inlet Thread Type | NPT |
| UPC Code | 00755652692201 |
| Model | SDM18 |
| Compatible Material | Oil;Antifreeze;ATF;Gear Oil |
| Dispense Type | Manual |
| Display Type | Electronic |
| Extension Type | Flexible |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Includes | Nozzle, Flexible Extension |
| Inlet Size | 1.905 (cm) |
| Inlet Size | 3/4 (in) |
| Inlet Size | 19.05 (mm) |
| Meter Technology | Oval Gear |
| Maximum Flow Rate | 18 (GPM) |
| Maximum Flow Rate | 68 (L/min) |
| Maximum Operating Temperature | 70 (°C) |
| Maximum Operating Temperature | 158 (°F) |
| Maximum Recorded Dispense | 9999 |
| Maximum Storage Temperature | 70 (°C) |
| Maximum Storage Temperature | 158 (°F) |
| Maximum Working Pressure | 103.4 (bar) |
| Maximum Working Pressure | 10340 (kPa) |
| Maximum Working Pressure | 10.3 (MPa) |
| Maximum Working Pressure | 1500 (psi) |
| Meter Accuracy | ±0.5 |
