GRACO
556670

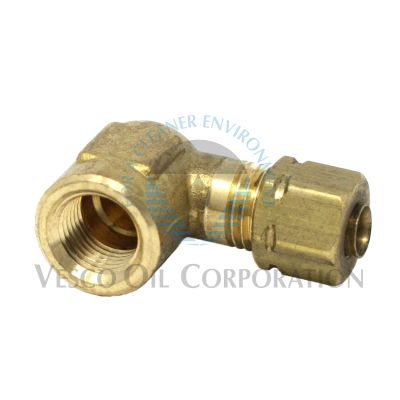

Graco 556670 Fitting 90° Elbow - 3/16 in. (4.8 mm) Tube Compression, 1/4-28 SAE Male to 1/8 in. (3.2 mm) NPT Female, 45°

• 90º Elbow - 3/16 in. (4.8 mm) Tube, 1/8 in. (3.2 mm) NPT Female
• Lubriquip part number 435-702-564

For Grease Jockey 3/16" (4.8 mm) tubing connections

Dimensions
Unit Length	0.7 (in)
Unit Volume	.000304 (ft³)
Unit Weight	0.055 (lb)
Unit Width	1.25 (in)
Unit Height	0.6 (in)

Attributes
Type	Elbow
Thread Type	NPT
Thread Gender	Female
System of Measurement	Imperial
Size B	3.175 (mm)
Size B	1/8 (in)
Size A	4.763 (mm)
Size A	3/16 (in)
For Use With	Tube
Connection Type	Tube End;Threaded
Compatible Material	Oil;Grease
Application	On-Road Vehicles
UPC Code	00633955198364
