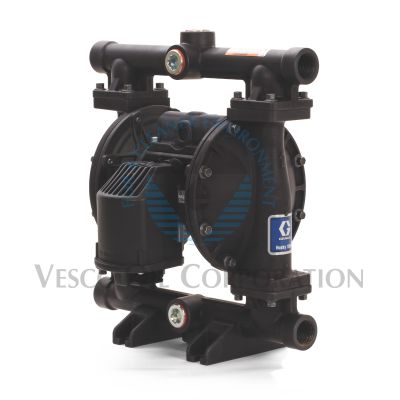

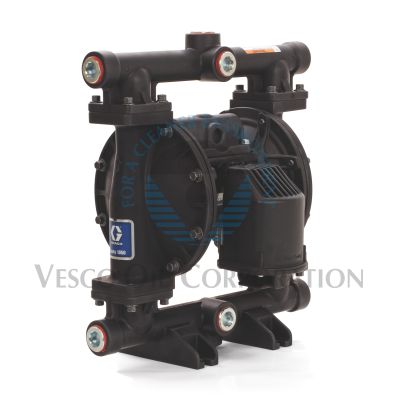

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
Factory Stock
| Dimensions | |
|---|---|
| Unit Length | 15 (in) |
| Unit Volume | 1.2543 (ft³) |
| Unit Weight | 26 (lb) |
| Unit Width | 8.5 (in) |
| Unit Height | 17 (in) |
| Attributes | |
|---|---|
| Maximum Fluid Pressure | 7 (bar) |
| For Use With | Oil, Waste Oil |
| Maximum Flow Rate | 189 (L/min) |
| Maximum Flow Rate | 50 (GPM) |
| Maximum Cycle Rate | 280 (CPM) |
| Maximum Air Pressure | 100 (psi) |
| Maximum Air Pressure | 0.7 (MPa) |
| Maximum Air Pressure | 700 (kPa) |
| Maximum Air Pressure | 7 (bar) |
| Maximum Air Consumption | 25 (SCFM) |
| Material | Aluminum |
| Manifold O-Ring Material | None |
| Wetted Material | Aluminum;TPC-ET;Acetal;PTFE;Buna-N |
| Maximum Fluid Pressure | 700 (kPa) |
| Maximum Fluid Pressure | 0.7 (MPa) |
| Maximum Fluid Pressure | 100 (psi) |
| Maximum Solid Size | 0.3175 (cm) |
| Maximum Solid Size | 0.125 (in) |
| Maximum Solid Size | 3.175 (mm) |
| Overall Height | 15.9 (in) |
| Power Source | Air |
| Pump Ratio | 1:1 |
| Seat Material | Buna-N |
| Standards Met | UL |
| Type | Pneumatic Diaphragm Pump |
| Weight | 23 (lb) |
| Compatible Material | Oil;Water;Antifreeze |
| UPC Code | 00755652329480 |
| Model | Husky |
| Series | 1050 |
| Air Exhaust Port Size | 3/4 (in) |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size | 1/2 (in) |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | Acetal |
| Center Section Material | Aluminum |
| Fluid Section Material | Aluminum |
| Connection Type | Threaded |
| Diaphragm Material | TPE (Hytrel) |
| Fluid Inlet Size | 2.54 (cm) |
| Fluid Inlet Size | 1 (in) |
| Fluid Inlet Size | 25.4 (mm) |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size | 2.54 (cm) |
| Fluid Outlet Size | 1 (in) |
| Fluid Outlet Size | 25.4 (mm) |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
